Special Design Bioclimatic Awning

(C) Facade

Module | 150cm → 400cm

(A) Expansion
Module | 148cm → 1000cm

(Y) Height
Module | 200cm → 300cm

HIGH PRESSURE CLAMPING

STREAM FILTERS

Thanks to the wicks in the streams on all four sides of the system and after the panels are closed, the maximum distance between the panel and the stream

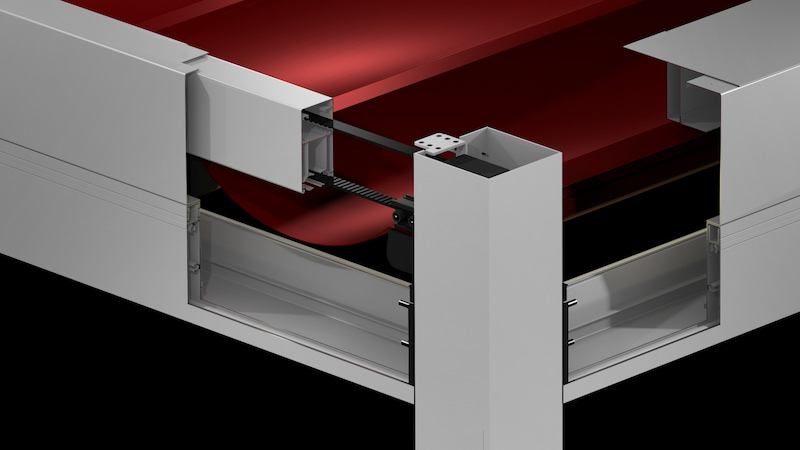

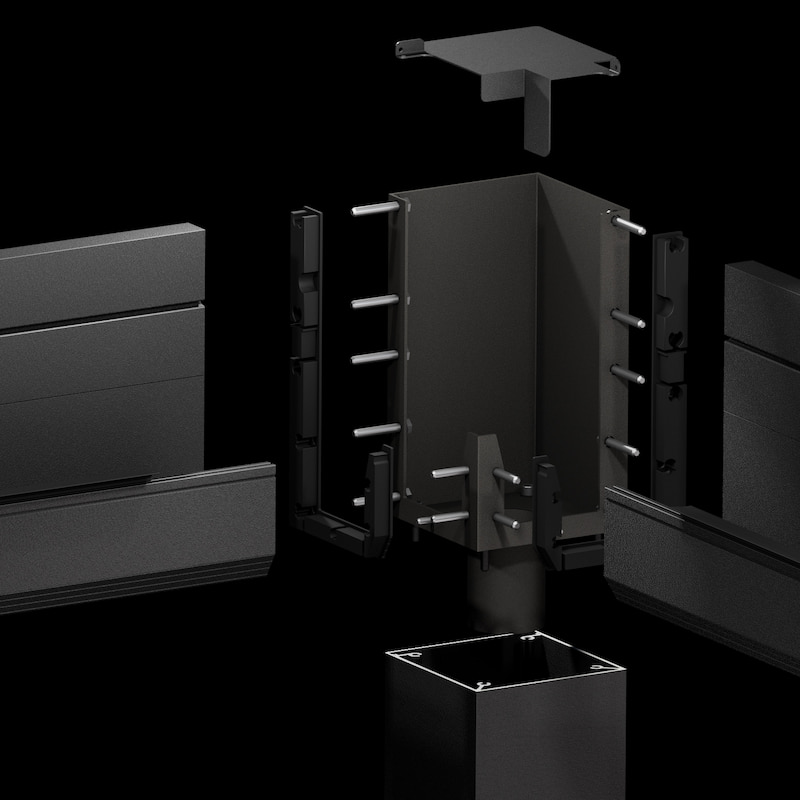

CORNER ADAPTOR

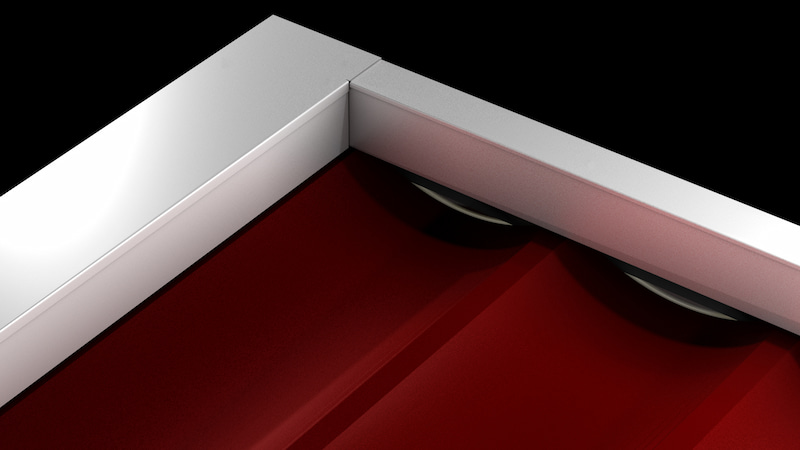

WARP-FREE FABRIC STRUCTURE

PDF CATALOG FOR DETAILED INFORMATION

Skyteks Bioclimatic Roll Bibus Motor Features

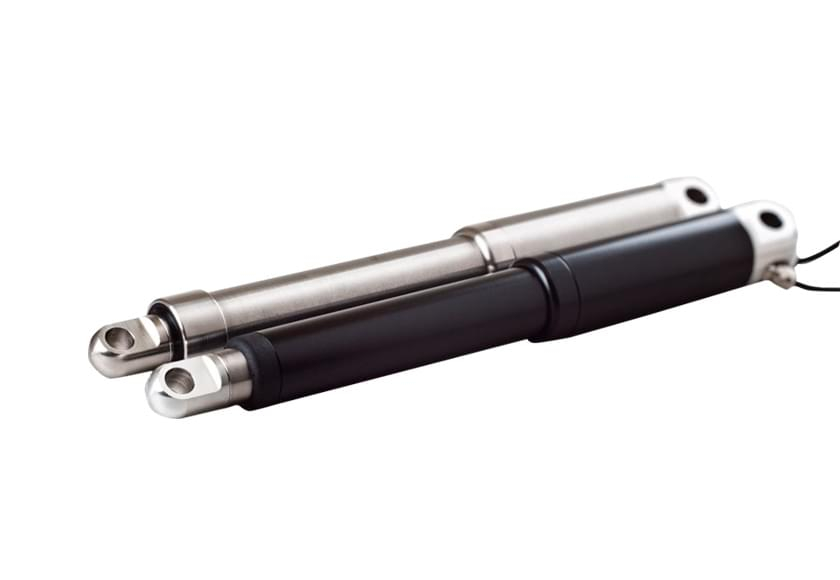

Our EasyE-50 Actuator
This product is ideal where size is limited by design or functionality.
This IP66 rated electric in-line actuator is constructed from powder coated steel with aluminium or stainless steel pistons, providing a robust design that protects the motor and electrics.
It comes with a variety of standard brackets in polyamide, aluminium or stainless steel for easy mounting.

Force: 500 – 4500N
Speed: 4 – 70 mm/s
Stroke: 50 – 750mm
Voltage: 12VDC or 24VDC

EasyE-35 Actuator
Our smallest and most versatile actuator is also our best seller. Its size, efficiency and elegant design make this electric in-line actuator the perfect fit for almost any small lifting job.

Force: 120 – 2200N
Speed: 3 – 33 mm/s
Stroke: 50 – 750mm
Voltage: 12VDC or 24VDC

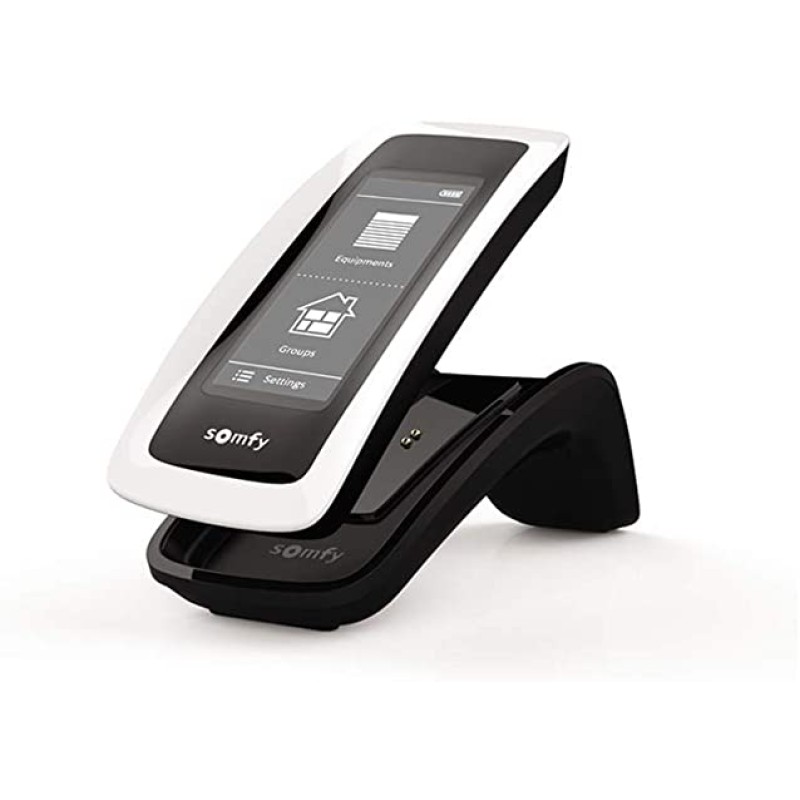

Somfy Motor

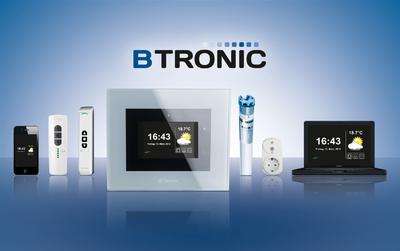

Becker Motor

MOTOR Warranty  Conditions
The motors used in the awning models we produce are covered by a 5-year brand warranty.

SYSTEM Warranty Conditions
The system functionality of the awning models we produce is covered by a 5-year warranty against physical negativities that may occur.

 FABRIC Warranty Conditions
The fabrics are imported, 3-layer         Block Out SERGE FERRARI and                 SIOEN with 5 years warranty. The fabrics are flame retardant and sunlight proof. It is the most suitable fabric for outdoor weather conditions with its PVC based flexy feature.

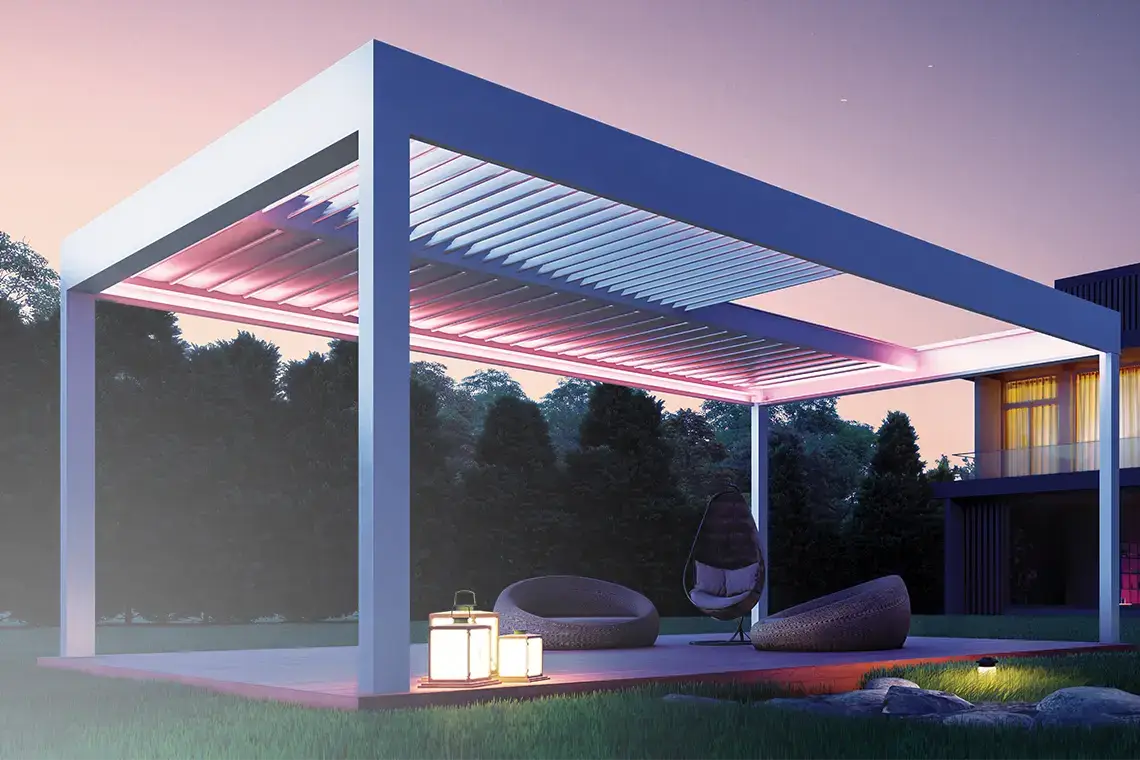

Custom Design Skyteks Bioclimatic Pergola Features

Skyteks awning is designed as a 400 facade 600 opening/unsupported; 400 facade 1050 opening/supported 1 module. The special design awning’s slope profile is 163.5×156 mm in size and weighs 7240 gr/m. The beam profile is 136.5×30 mm in size and weighs 2510 gr/m. The special design awning reaches a total cross-section height of 30 cm. The concept awning prevents potential water overflow with its slope profiles and wide reservoir. When the profiles are connected, they create unity and are integrated with a double-claw lock system. This results in high strength, allowing for long openings. The column profile is 160×160 mm in size and weighs 6050 gr/m. Skyteks awning is installed with PVC pipes inside the area where water drainage will take place, and the water from the gutter is discharged with the help of PVC. The columns are connected to the ground with a 6 mm aluminum flange, hiding the screw appearance that would disrupt aesthetics. The use of stainless bolts and drain in the columns prevents oxidation. Panel profiles are 20.6 mm in width and weigh 4630 gr/m. The special design awning prevents water accumulation with the hidden slope inside the panel. The special reservoir structure on the top of the panel prevents substances that may accumulate on the system from falling inside during the opening of the system. The practical special design awning provides lighting and ventilation with its privileged panels by opening with a single point movement. To make this movement, the profile to which the panels are attached is lifted with a high-pressure piston motor.

Custom Design Skyteks Bioclimatic Pergola Models

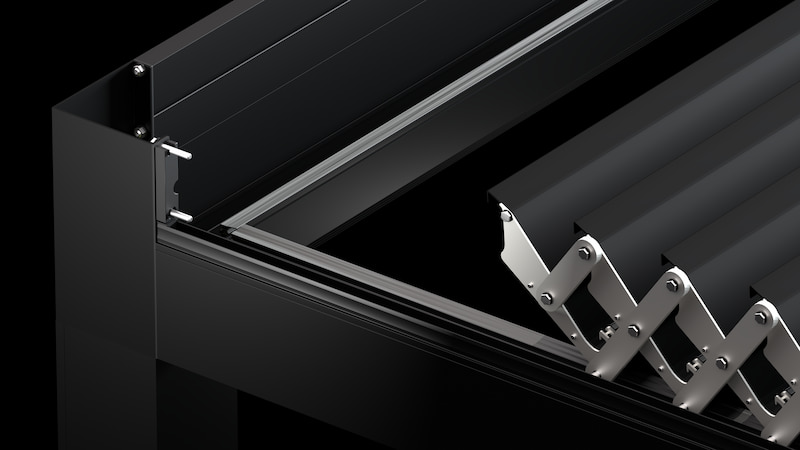

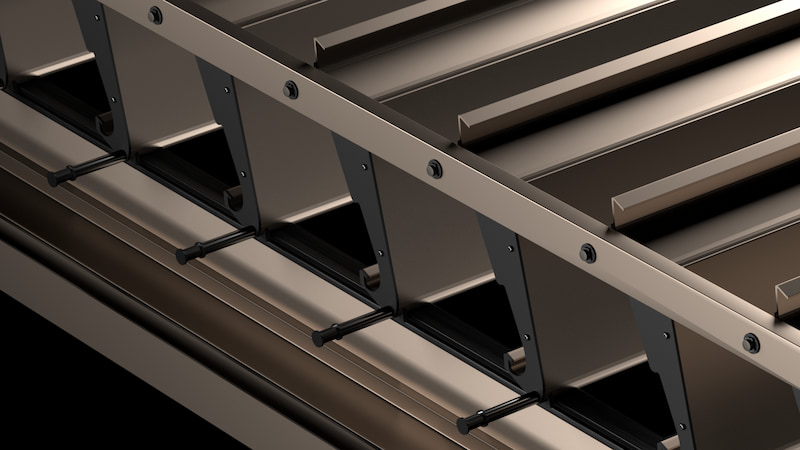

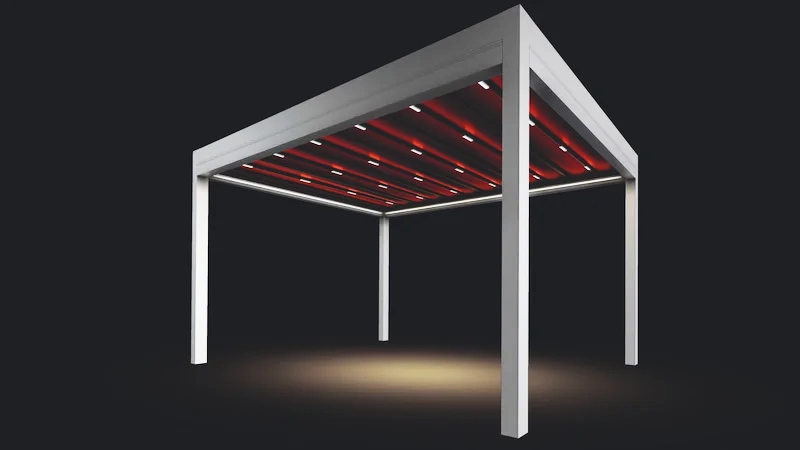

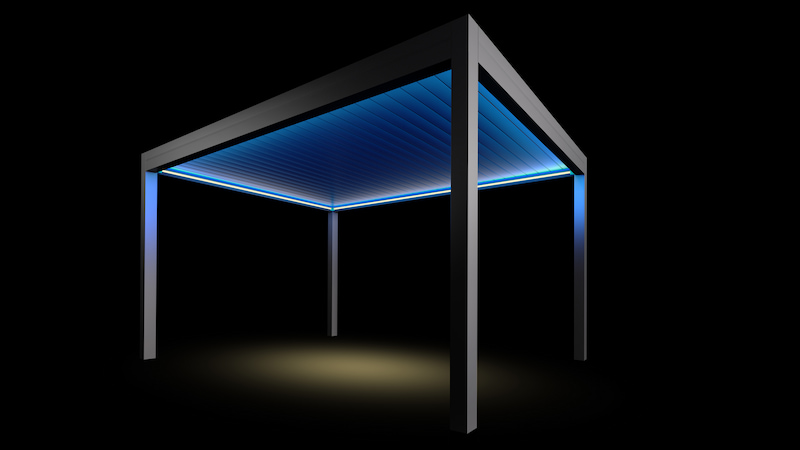

Skyteks has 3 different practical custom design awning models, and these 3 models are named Skyteks Slide, Skyteks Roll, and Skyteks Soft as concept awnings. All models are produced within superior quality standards, offering cost-effective performance and user-friendliness. Skyteks Slide is a retractable and foldable system, and the scissors in the system are made of 10 mm aluminum material with high strength. The use of waterproof bearings in the scissors ensures the smooth and comfortable operation of the system, while also preventing oxidation and mechanical problems due to adverse weather conditions over time. The strong scissor structure preserves the initial working ability for many years. The fillers located on all four sides of the system and the panels provide maximum insulation between the panel and the slope after closing. The strength of the scissor structure, combined with the application of double-channel fillers on the panels, achieves maximum insulation. In addition, the entry of water flowing from the panel into the environment is prevented. Thus, it does not allow you to be affected by adverse weather conditions. Panels, fully raised with piston movement, provide maximum ventilation. In winter conditions, when positioned at a 10-degree angle, it performs the ventilation function. Skyteks Roll is a movable ceiling system consisting of panels that move at a 110-degree angle around its axis, thanks to its special design. This movement provides environmental ventilation and also offers optimal shading according to the angle of the sun. Skyteks Soft achieves perfect harmony with the Pergola System mechanism with its high-strength aluminum construction structure. Skyteks Soft has 2 modules with a 800 facade 800 opening. Thanks to the bulges given in one direction inside the fabric in the structure without inclination, the water flow is directed to the slope. It contributes to environmental ventilation while ensuring water flow. With the zero slope capability of the system, we make your seating areas more spacious and comfortable.

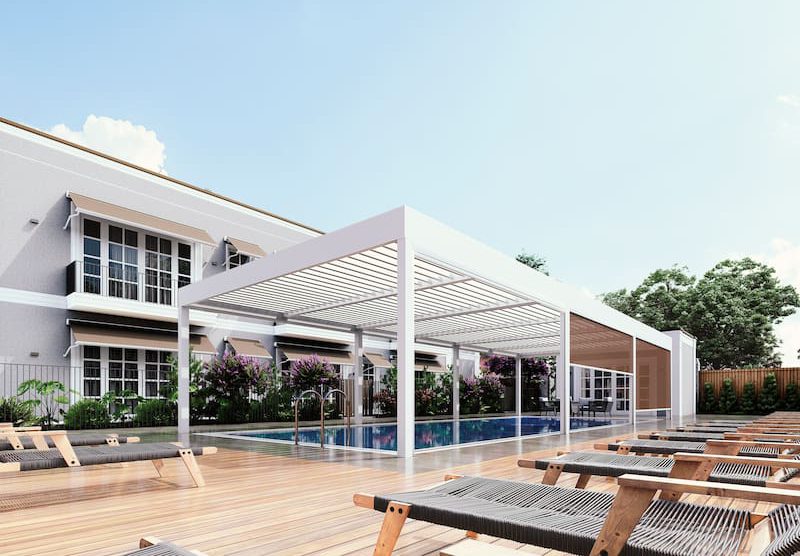

Custom Design Skyteks Bioclimatic Pergola Usage Areas

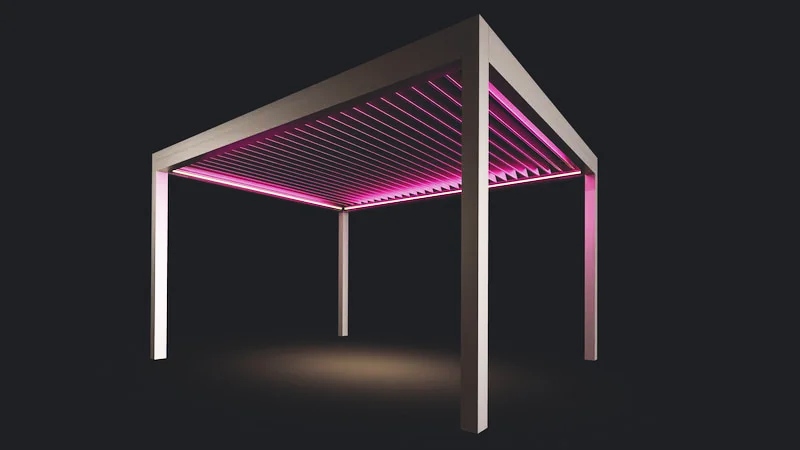

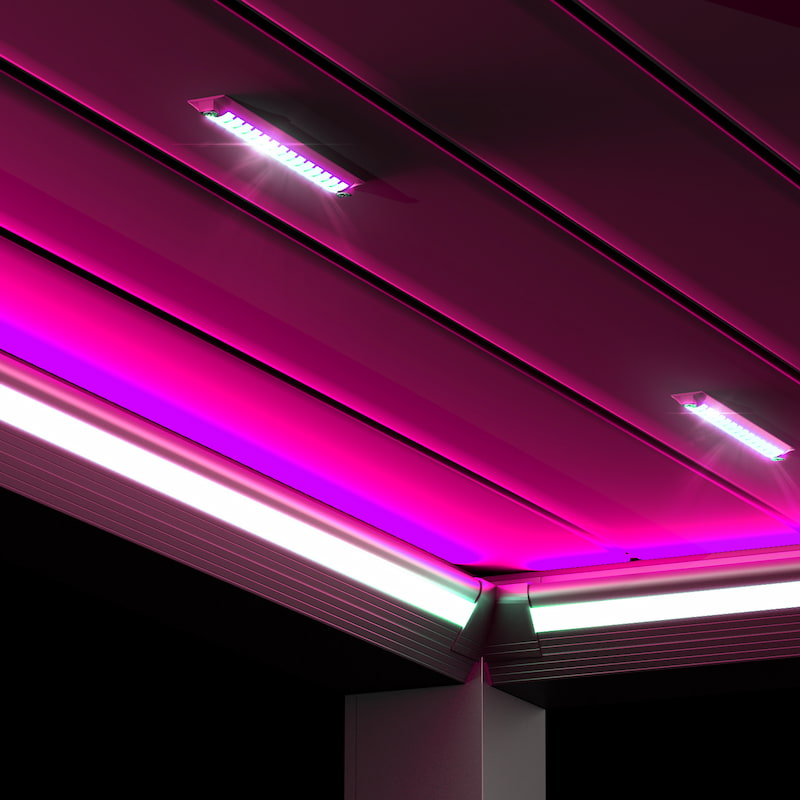

Skyteks awning provides sound, water, and thermal insulation without using any insulation material such as silicone in the system channels, thanks to specially produced fillers and gaskets. The convenient custom design awning, with its easy and fast assembly design and fully demountable structure, offers a technical advantage. The most important feature that distinguishes the system from its counterparts is the adapters located at the 4 corners. Thanks to the corner adapters, slopes are not cut at a 45-degree angle, thus further increasing the compatibility of the profiles. The use of first-class rubber seals between corner adapters and slopes overcomes silicone application problems and prevents water isolation problems. 24 Volt LED lighting is used in the aluminum panel system. The single profile includes both standard lighting (700 lumens-3000 kelvin-daylight) and ambient RGB lighting directed towards the panel. The independence of the LED profile from the slope ensures the smooth operation and long life of the LED lighting. The concept awning serves as a stylish complement to cafes, restaurants, hotels, pools, verandas, and is also used as a winter garden in residences. With the roof’s mobility, when the panels are held at a certain angle, natural ventilation is provided, and at the same time, it can be used as a shading device. The folding movement of the panels allows for easy cleaning from the inside without the need to climb onto the roof. It is colored with electrostatic oven paint, and application in any desired color is possible. Thanks to the oven paint, it is durable for a long time.
